Pumping Equipment LGB-30DV Variable Pitch Screw Dry Vacuum Pump with high quality and low price low noise

Name: Pumping Equipment LGB-30DV Variable Pitch Screw Dry Vacuum Pump with high quality and low price low noise
Brand: China Coal
SKU: LGB-30DV
Price: 1.00 USD
Availability: InStock
Rating: 4.9 (155 reviews)

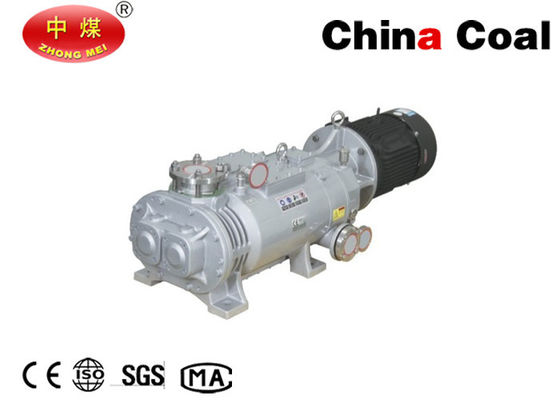

Gambar besar : Pumping Equipment LGB-30DV Variable Pitch Screw Dry Vacuum Pump with high quality and low price low noise

Detail produk:

Place of Origin:	China Shandong
Nama merek:	China Coal
Sertifikasi:	CE, SGS, TUV, BV, ISO, MA
Model Number:	LGB-30DV

Syarat-syarat pembayaran & pengiriman:

Minimum Order Quantity:	1
Harga:	negotiation
Packaging Details:	Standard Export Packaging
Delivery Time:	Shipped in three days after payment
Payment Terms:	TT, Paypal, Western Union
Supply Ability:	5000

Kontak

Detil Deskripsi produk

Model:	LGB-30DV	Ultimate Total Pressure:	5Pa
Motor Power kW:	4	Power Consumption 50Hz kW:	1.8
Inlet mm:	40	Outlet mm:	40
Cooling Water Supply Pressure MPa:	0.1-0.5
Cahaya Tinggi:	pressure pumping equipment , industrial pumps

APPLICATIONS

LGB series variable pitch screw dry vacuum pumps can be widely used in chemical industry, pharmaceutical industry, food industry, solar, metallurgical system, heat treatment, electronics industry, ect.

SPECIFICATIONS

Pumping Equipment LGB-30DV Variable Pitch Screw Dry Vacuum Pump with high quality and low price low noise
Model			LGB-30DV	LGB-70DV	LGB-100DV	LGB-200DV
Displacement	50Hz	L/s	30	70	92	183
		m/h	110	250	330	660
		cfm	65	147	195	389
	60Hz	L/s	36	83	111	222
		m/h	130	300	400	800
		cfm	77	177	236	471
Ultimate Total Pressure		Pa	5	1	1	1
Ultimate Total Pressure		Torr	0.037	0.0075	0.0075	0.0075
Motor Power		kW	4	7.5	11	15
Power Consumption	50Hz	kW	1.8	5	7	10.2
Power Consumption	60Hz	kW	3.0	6	8.6	12.8
Inlet		mm	40	50	65	100
Outlet		mm	40	40	50	65
Cooling Water	Supply Pressure	MPa	0.1-0.5	0.1-0.5	0.1-0.5	0.1-0.5
	Flow Rate	L/min	5-10	10-15	10-15	15-20
	Temperature	C	5-32	5-32	5-32	5-32
	Connection	DN15	G1/2"	G1/2"	G1/2"	G1/2"
Weight	Without Motor	kg	190	290	370	580

Pumping Equipment LGB-30DV Variable Pitch Screw Dry Vacuum Pump with high quality and low price low noise
