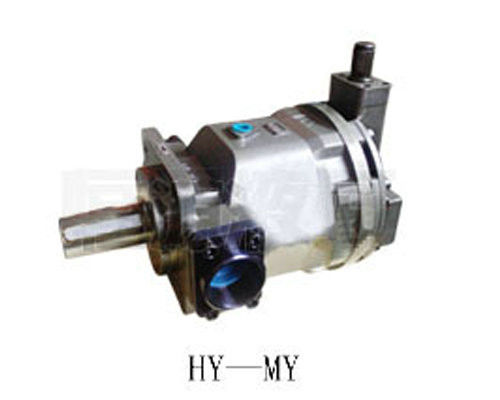

Keyed Shaft Viton Variable Axial Piston Pump , Hydraulic HY Single Pump

Gambar besar : Keyed Shaft Viton Variable Axial Piston Pump , Hydraulic HY Single Pump

Detail produk:

Place of Origin:	China
Nama merek:	Hengyuan Hydraulic
Sertifikasi:	ISO9000
Model Number:	HY80Y-RP, HY160Y-RP, HY250Y-RP

Syarat-syarat pembayaran & pengiriman:

Minimum Order Quantity:	1 pc
Packaging Details:	Carton
Delivery Time:	15days
Payment Terms:	T/T, L/C
Supply Ability:	1000 pcs per month

Kontak

Detil Deskripsi produk

Application:	Boats hydraulic system, Loader	Direction of rotation:	Clockwise
feature:	Low noise	Power:	Hydraulic
Seals:	Perbunan, Viton	Structure:	Piston Pump
Type the shaft:	SAE splined, SAE parallel with key	Usage:	oil
Cahaya Tinggi:	variable hydraulic pump , variable displacement piston pump

Keyed Shaft Viton Variable Axial Piston Pump , Hydraulic HY Single Pump

Quick details

Variable Axial Piston Pump HY Series

Rated pressure 315 bar

Peak pressure 400bar

displacement is 80 cc

Keyed shaft, single pump

Low noise, Small Volume

It is Axial piston pump, Rated pressure 315 bar, Peak pressure 400bar, displacement is 80 cc, Constant power control, Clockwise Rotation, Perbunan seals, Keyed shaft, single pump.

Keyed Shaft Viton Variable Axial Piston Pump , Hydraulic HY Single Pump 0

Specifications:

Keyed Shaft Viton Variable Axial Piston Pump , Hydraulic HY Single Pump 1

Applications:

Hydraulic system. Boats Hydraulic system. Pressure Machine, Cut machine, Package Machine

Advantage:

Good quality, Competitive price and quick delivery.

Low noise, Small Volume

Description:

Ordering Code	Detail
HA10V(S)	Model Variable pump,Swashplate design	Rated pressure 280bar	Peak pressure 350bar
O	Mode of operation Pump,Circuit
28	Displacement 18 . 28 . 45 . 71 . 100 . 140(ml/r)
DR	Two point ,direct control ,DRG--- Remote pressure control	Pressure control,Pressure and flow control	DFR1 Pressure and flow control ,Orifice in X-channel closed	Pressure . flow and torque control
/
31	Series: 31 Series
R	Direction of rotation R--- Clockwise	L--- Anti-clockwise
-
P	P-- Perbunan	Seals V-- Viton
S	Type the shaft:P--- Metric parallel with key	S-- SAE splined	K-- SAE parallel with key	U-- SAE splined,reduced dia.
C	Mounting flange:C--- SAE 2-hole	D--- SAE 4-hole	A- ISO 2-hole	B- ISO 4-hole
62	Port form:11—Back SAE, Port for SAE flage rear,fixing thread metric	service Lines 12---Both sides SAE,SAE flage on opposite side,fixing thread UNC	61--- SAE,UNC Screw thread, SAE flage rear ,fixing thread UNC	62---Both sides SAE,UNC Screw thread, SAE flage on opposite side,fixing thread UNC
NOO	Thru-form:N00- Nowhere shaft	without through drive	K**--- Thru	with through drive
