Constant Power Control Axial Piston Pump , 80 cc Displacement CY Series

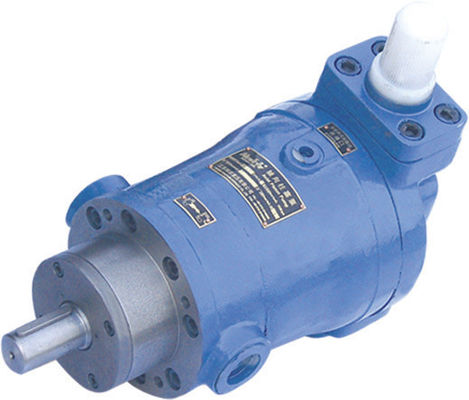

Gambar besar : Constant Power Control Axial Piston Pump , 80 cc Displacement CY Series

Detail produk:

Place of Origin:	China
Nama merek:	Hengyuan Hydraulic
Sertifikasi:	ISO9000
Model Number:	80YCY14-1B,160YCY14-1B, 250YCY14-1B

Syarat-syarat pembayaran & pengiriman:

Minimum Order Quantity:	1 pc
Packaging Details:	Carton
Delivery Time:	15days
Payment Terms:	T/T, L/C
Supply Ability:	1000 pcs per month

Kontak

Detil Deskripsi produk

Menyoroti:	electric hydraulic pump

Constant Power Control Axial Piston Pump , 80 cc Displacement CY Series

Quick details

Constant Power Control Axial Piston Pump CY Series

Rated pressure 315 bar

Peak pressure 400bar

displacement is 80 cc

Keyed shaft, single pump

It is Axial piston pump, Rated pressure 315 bar, Peak pressure 400bar, displacement is 80 cc, Constant power control, Clockwise Rotation, Perbunan seals, Keyed shaft, single pump.

Constant Power Control Axial Piston Pump , 80 cc Displacement CY Series 0

Specifications:

Dimension model	10(16)YCY	25(40)YCY	63(80)YCY	160YCY	250(400)YCY
A	φ125	φ150	φ190	φ240	φ280
B(f9)	φ75	φ100	φ120	φ150	φ180
C	27.5	32.5	42.8	59	63.9
D(h6)	φ25	φ30	φ40	φ55	φ60
E	4	4	4	4	5
F	30	45	50	100	100
G	40	52	60	106	110
H	41	54	62	110	112
I	86	104	122	180	212
J	109	134	157	230	272(277)
K	194	246	300	411	492(502)
L	71	83	108	141	170
M	M14×1.5	M14×1.5	M18×1.5	M22×1.5	M22×1.5
N	M10	M10	M12	M16	M20
P				M16	M20
Q(h9)	8	8	12	16	18
R	φ100	φ125	φ155	φ198	φ230
S	142	172	200	340	420
T	M22×1.5	M33(M42)×2	M42(M48)×2	φ55	φ64(φ66)
U				φ64	φ76
X	294	362	439	595	690(700)
Y	258	317	390	533	629(639)
Z	50	66	74	100	100
EE	100	120	140	173	210
FF	288	351	400	448	516
