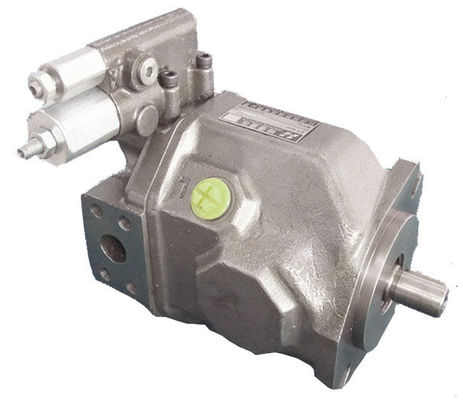

High Pressure Hydraulic Pump For Truck

Gambar besar : High Pressure Hydraulic Pump For Truck

Detail produk:

Place of Origin:	China
Nama merek:	Hengyuan Hydraulic
Sertifikasi:	ISO9000
Model Number:	A10VSO45 DFR/31R-PPA12N00

Syarat-syarat pembayaran & pengiriman:

Minimum Order Quantity:	1 pc
Packaging Details:	Carton
Delivery Time:	15days
Payment Terms:	T/T, L/C
Supply Ability:	1000 pcs per month

Kontak

Detil Deskripsi produk

Cahaya Tinggi:

variable hydraulic pump

variable piston pump

High Pressure Hydraulic Pump For Truck

Quick details

High Pressure Hydraulic Pumps for Concrete Pump Truck

displacement is 45cc

Clockwise Rotation

Keyed shaft

SAE 2 hole UNC metric thread

Side port type, single pump

Axial piston pump, displacement is 45cc.

Pressure and Flow control

Clockwise Rotation

Perbunan seals

Keyed shaft

SAE 2 hole UNC metric thread

Side port type, single pump

Applications:

Hydraulic System, engineering machine, Concrete pump truck, Boats hydraulic system.

Specifications:

Specifications				16/18	28	45	71	100	140
Displacement		V_{g max}	cm³	18	28	45	71	100	140
Max speed		n_max	rpm	3300	3000	2600	2200	2000	1800
Max. flow	in n_max	q_v	L/min	59.4	84	117	156	200	252
Max. flow	in 1500 r/min	q_v	L/min	27	42	68	107	150	210
Max. power (Δp=280bar)	in n_max	P_max	Kw	27.7	39	55	73	93	118
Max. power (Δp=280bar)	in 1500 r/min	P_max	Kw	12.6	20	32	50	70	98
Max. torque (Δp=280bar)	in V_{g max}	Tmax	Nm	80.1	125	200	316	445	623
Weight		m	Kg	12	15	21	33	45	60
