Pompa Piston Tekanan Tekanan Tinggi A10VSO28 untuk Sistem Hidrolik Kapal

A10VSO28 Variable Displacement High Pressure Piston Pump For Ship Hydraulic System

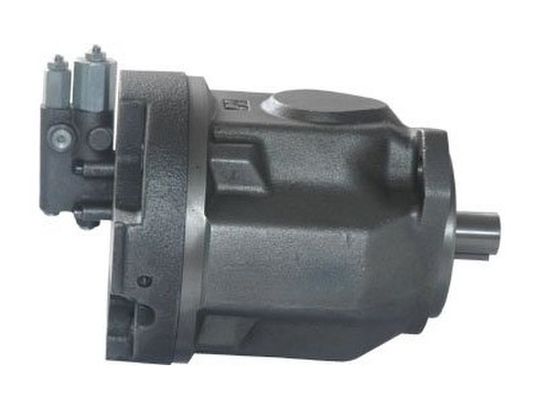

Gambar besar : Pompa Piston Tekanan Tekanan Tinggi A10VSO28 untuk Sistem Hidrolik Kapal

Detail produk:

Tempat asal:	Cina
Nama merek:	LITOP
Sertifikasi:	ISO9001-2000
Nomor model:	A10VSO18 / 28/45/71/100/140

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1 Set
Harga:	NEGOTIABLE
Kemasan rincian:	OEM / NETURAL
Waktu pengiriman:	3-5 hari
Syarat-syarat pembayaran:	T/T, Barat Union, Paypal
Menyediakan kemampuan:	80000 PCS / MONTH

Kontak

Detil Deskripsi produk

Cahaya Tinggi:

perpindahan variabel pompa hidrolik

flow control pump

Pompa Piston Tekanan Tekanan Tinggi A10VSO28 untuk Sistem Hidrolik Kapal

Rincian cepat

Pompa Piston Hidrolik

Suara rendah, Volume Kecil

Pompa piston aksial

Perpindahan adalah 18cc / 28cc / 45cc

Rotasi searah jarum jam

Pompa Hidrolik Pompa Tekanan Tinggi Piston Hidrolik

Keuntungan:

Kualitas bagus, harga bersaing dan pengiriman cepat.

Suara rendah, SmallVolume

Pompa piston aksial, perpindahan adalah 18cc / 28cc / 45cc / 71cc / 100cc / 140cc.

Tekanan dan kontrol aliran

Rotasi searah jarum jam

Segel Perbunan

Poros splined

Benang SAE 2 hole UNC inci

Thru-drive Rear Cover, bisa menghubungkan pompa lain

Spesifikasi:

Spesifikasi:				16/18	28	45	71	100	140
Pemindahan		V _{g maks}	cm ³	18	28	45	71	100	140
kecepatan maksimum		n _maks	rpm	3300	3000	2600	2200	2000	1800
Maks. mengalir	di n _max	q _ay	L / min	59.4	84	117	156	200	252
Maks. mengalir	di 1500 r / menit	q _ay	L / min	27	42	68	107	150	210
Maks. daya (Δp = 280bar)	di n _max	P _maks	Kw	27.7	39	55	73	93	118
Maks. daya (Δp = 280bar)	di 1500 r / menit	P _maks	Kw	12.6	20	32	50	70	98
Maks. torsi (Δp = 280bar)	di V _{g maks}	Tmax	Nm	80.1	125	200	316	445	623
Berat		m	Kg	12	15	21	33	45	60

Aplikasi:

Sistem hidrolik Sistem Ship Hydraulic.

Keuntungan:

Kualitas bagus, harga bersaing dan pengiriman cepat.

Suara rendah, SmallVolume

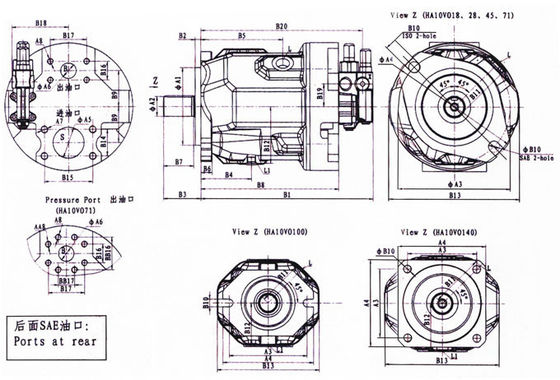

Pemindahan	Mounting Flange A (B) ISO (4) - lubang					Mounting Flange C (D) SAE 2 (4) - lubang					A4	A5	A6
Pemindahan	A1	A3	B2	B10	L (L1)	A1	A3	B2	B10	L (L1)	A4	A5	A6
18	80h8	109	7	11	M16 × 1.5	82,55h8	106.4	6.3	11	9 / 16-18UNF	134	25	20
28	100h8	140	9	14	M18 × 1.5	101.6h8	146	9.5	φ14	3 / 4-16 UNF	174	32	20
45	100h8	140	9	14	M22 × 1.5	101.6h8	146	9.5	φ14	7 / 8-14 UNF	174	40	25
71	125h8	180	9	18	M22 × 1.5	127h8	181	12.7	φ18	7 / 8-14 UNF	210	50	25
100	125h8	180	9	17.5	M27 × 2	127h8	181	12.7	17.5	11 / 16-12 UNF	210	60	32
140	180h8	158,4 × 158,4	9	φ18	M27 × 2	152.4h8	161,6 × 161,6	12.7	φ20	11 / 16-12 UNF	200 × 200	63	32

MINYAK PORT JENIS Dimensi

Pemindahan	PORTS PADA SISI YANG SEDERHANA						PORTS DI REAR						(UNC)
Pemindahan	B1	B8	B9	B18	B19	B20	B1	B8	B9	B18	B19	B20	A7	A8
18	195	145	63	109	40	130							M10 (3/8-16OOC)	M10 (3/8-16OOC)
28	206	164	80	119	40	140	225	170	45	73	43	209	M10 (7 / 16-14OO)	M10 (3/8-16OOC)
45	224	184	90	129	40	155	244	189	50	81.5	40	228	M12 (1/2-13OO)	M10 (3/8-16OOC)
71	259	217	104	143	40	183	278	223	58	91.5	40	262	M12 (1/2-13OO)	M10 (3/8-16OOC)
100	329	275	100	148	40	250	344	288	55	99	40	327	M12 (1/2-13OO)	M14 (1/6-13OO)
140	337.5	275	110	183	27	222	379	293	60	140	27	353	M12 (1/2-13OO)	M14 (1/6-13OO)

Ukuran universal

CC	B4	B5	B6	B11	B12	B13	B14	B15	B16	B17	X	B	S
18	43	83	11.5	67	66	152	26.2	52.4	22.2	47.6	7 / 16-20UNF	3/4 "	1 "
28	40	90	13	74	75	164	30.2	58.7	22.2	47.6	7 / 16-20UNF	3/4 "	11/4 "
45	45	96	13	83	81	184	35.7	69.9	26.2	52.4	7 / 16-20UNF	1 "	11/2 "
71	53	115	17	98	92	210	42.9	77,8	30.2	58.7	7 / 16-20UNF	1 "	2 "
100	95	175	20	106	95	236	50,8	88.9	31.8	66.7	7 / 16-20UNF	11/4 "	21/2 "
140	78	173	21	118.5	108	262	50,8	88.9	31.8	66.7	M14 × 1.5	11/4 "	21/2 "
