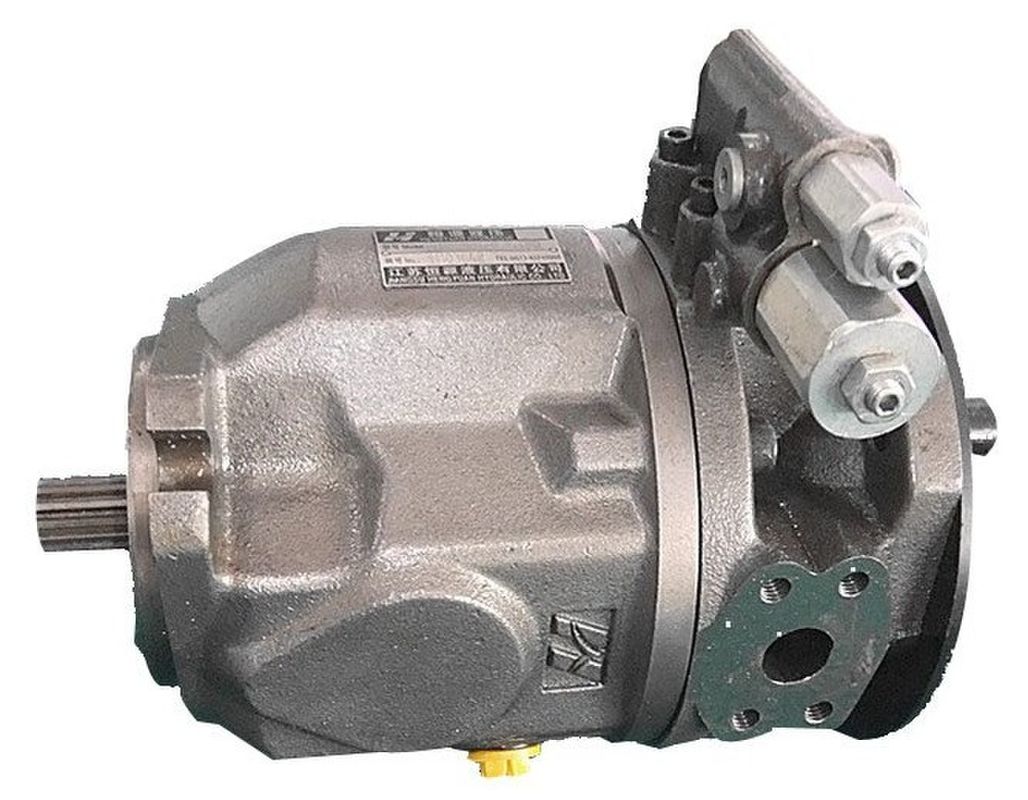

Lumpur Lumpur Industri Pompa Hidrolik Tekanan Tinggi Pompa Rendah Kebisingan A10VSO45
Deskripsi Produk Terperinci
Rotasi Tinggi Rotasi Pompa Hidrolik Aksial untuk Pemindahan Excavator 45cc
Rincian cepat
Tekanan Tinggi Tandem Variable Hydraulic Pump
Pompa piston aksial
Perpindahan adalah 18cc / 28cc / 45cc
Rotasi searah jarum jam
untuk excavator, alat mesin
Pompa piston aksial, perpindahan adalah 18cc / 28cc / 45cc / 71cc / 100cc / 140cc.
Tekanan dan kontrol aliran
Rotasi searah jarum jam
Segel Perbunan
Poros splined
Benang SAE 2 hole UNC inci
Thru-drive Rear Cover, bisa menghubungkan pompa lain
Spesifikasi:
Spesifikasi: | | | | 16/18 | 28 | 45 | 71 | 100 | 140 |
Pemindahan | | V g maks | cm 3 | 18 | 28 | 45 | 71 | 100 | 140 |
kecepatan maksimum | | n maks | rpm | 3300 | 3000 | 2600 | 2200 | 2000 | 1800 |
Maks. mengalir | di n max | q ay | L / min | 59.4 | 84 | 117 | 156 | 200 | 252 |
di 1500 r / menit | 27 | 42 | 68 | 107 | 150 | 210 |
Maks. daya (Δp = 280bar) | di n max | P maks | Kw | 27.7 | 39 | 55 | 73 | 93 | 118 |
di 1500 r / menit | 12.6 | 20 | 32 | 50 | 70 | 98 |
Maks. torsi (Δp = 280bar) | di V g maks | Tmax | Nm | 80.1 | 125 | 200 | 316 | 445 | 623 |
Berat | | m | Kg | 12 | 15 | 21 | 33 | 45 | 60 |
Pompa piston aksial, perpindahan adalah 18cc / 28cc / 45cc / 71cc / 100cc / 140cc.
Tekanan dan kontrol aliran
Rotasi searah jarum jam
Segel Perbunan
Poros splined
Benang SAE 2 hole UNC inci
Thru-drive Rear Cover, bisa menghubungkan pompa lain
Aplikasi:
Sistem hidrolik Sistem Ship Hydraulic.
excavator, alat mesin, pertanian, bubur lumpur, rig pengeboran ladang minyak
Keuntungan:
Kualitas bagus, harga bersaing dan pengiriman cepat.
Suara rendah, Volume Kecil
A10VSO28, A10VSO45, A10VSO71, A10VSO100, A10VSO140

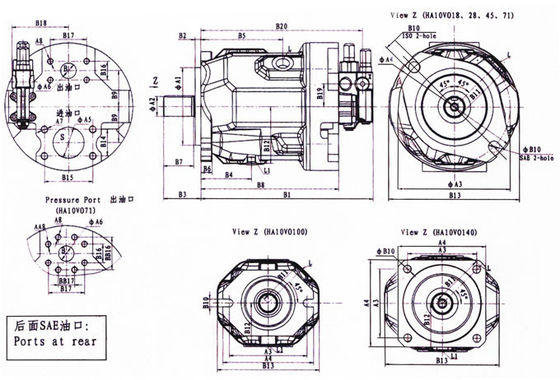

Pemindahan | Mounting Flange A (B) ISO (4) - lubang | Mounting Flange C (D) SAE 2 (4) - lubang | A4 | A5 | A6 |
A1 | A3 | B2 | B10 | L (L1) | A1 | A3 | B2 | B10 | L (L1) |
18 | 80h8 | 109 | 7 | 11 | M16 × 1.5 | 82,55h8 | 106.4 | 6.3 | 11 | 9 / 16-18UNF | 134 | 25 | 20 |
28 | 100h8 | 140 | 9 | 14 | M18 × 1.5 | 101.6h8 | 146 | 9.5 | φ14 | 3 / 4-16 UNF | 174 | 32 | 20 |
45 | 100h8 | 140 | 9 | 14 | M22 × 1.5 | 101.6h8 | 146 | 9.5 | φ14 | 7 / 8-14 UNF | 174 | 40 | 25 |
71 | 125h8 | 180 | 9 | 18 | M22 × 1.5 | 127h8 | 181 | 12.7 | φ18 | 7 / 8-14 UNF | 210 | 50 | 25 |
100 | 125h8 | 180 | 9 | 17.5 | M27 × 2 | 127h8 | 181 | 12.7 | 17.5 | 11 / 16-12 UNF | 210 | 60 | 32 |
140 | 180h8 | 158,4 × 158,4 | 9 | φ18 | M27 × 2 | 152.4h8 | 161,6 × 161,6 | 12.7 | φ20 | 11 / 16-12 UNF | 200 × 200 | 63 | 32 |
MINYAK PORT JENIS Dimensi
Pemindahan | PORTS PADA SISI YANG SEDERHANA | PORTS DI REAR | (UNC) |
B1 | B8 | B9 | B18 | B19 | B20 | B1 | B8 | B9 | B18 | B19 | B20 | A7 | A8 |
18 | 195 | 145 | 63 | 109 | 40 | 130 | | | | | | | M10 (3/8-16OOC) | M10 (3/8-16OOC) |
28 | 206 | 164 | 80 | 119 | 40 | 140 | 225 | 170 | 45 | 73 | 43 | 209 | M10 (7 / 16-14OO) | M10 (3/8-16OOC) |
45 | 224 | 184 | 90 | 129 | 40 | 155 | 244 | 189 | 50 | 81.5 | 40 | 228 | M12 (1/2-13OO) | M10 (3/8-16OOC) |
71 | 259 | 217 | 104 | 143 | 40 | 183 | 278 | 223 | 58 | 91.5 | 40 | 262 | M12 (1/2-13OO) | M10 (3/8-16OOC) |
100 | 329 | 275 | 100 | 148 | 40 | 250 | 344 | 288 | 55 | 99 | 40 | 327 | M12 (1/2-13OO) | M14 (1/6-13OO) |
140 | 337.5 | 275 | 110 | 183 | 27 | 222 | 379 | 293 | 60 | 140 | 27 | 353 | M12 (1/2-13OO) | M14 (1/6-13OO) |
Ukuran universal
CC | B4 | B5 | B6 | B11 | B12 | B13 | B14 | B15 | B16 | B17 | X | B | S |
18 | 43 | 83 | 11.5 | 67 | 66 | 152 | 26.2 | 52.4 | 22.2 | 47.6 | 7 / 16-20UNF | 3/4 " | 1 " |
28 | 40 | 90 | 13 | 74 | 75 | 164 | 30.2 | 58.7 | 22.2 | 47.6 | 7 / 16-20UNF | 3/4 " | 11/4 " |
45 | 45 | 96 | 13 | 83 | 81 | 184 | 35.7 | 69.9 | 26.2 | 52.4 | 7 / 16-20UNF | 1 " | 11/2 " |
71 | 53 | 115 | 17 | 98 | 92 | 210 | 42.9 | 77,8 | 30.2 | 58.7 | 7 / 16-20UNF | 1 " | 2 " |
100 | 95 | 175 | 20 | 106 | 95 | 236 | 50,8 | 88.9 | 31.8 | 66.7 | 7 / 16-20UNF | 11/4 " | 21/2 " |
140 | 78 | 173 | 21 | 118.5 | 108 | 262 | 50,8 | 88.9 | 31.8 | 66.7 | M14 × 1.5 | 11/4 " | 21/2 " |
