Low Displacement Hydraulic Gear Pump For Small Bidirectional Hydraulic Systems

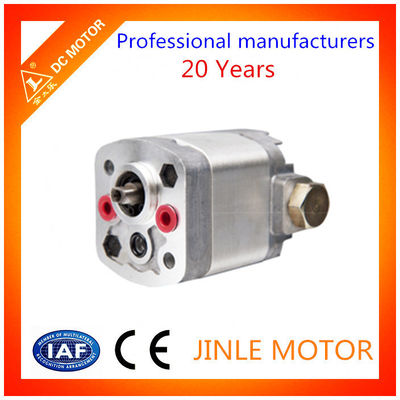

Gambar besar : Low Displacement Hydraulic Gear Pump For Small Bidirectional Hydraulic Systems

Detail produk:

Place of Origin:	China
Nama merek:	Jinle
Sertifikasi:	CE, ISO9001

Syarat-syarat pembayaran & pengiriman:

Minimum Order Quantity:	1
Harga:	Negotiation
Packaging Details:	usual pack or customized pack
Delivery Time:	7-15 days
Payment Terms:	Western Union, L/C, T/T
Supply Ability:	16,500 pieces per month

Kontak

Detil Deskripsi produk

Displacement:

0.27-1.54mL/r

Speed:

3000rpm

Max efficiency:

85%

Dimension:

option

Cahaya Tinggi:

hydraulic gear motor

gear pump motor

High Quality Hydraulic Gear Pump For Small Bidirectional Hydraulic Systems

General Description

　　CB-E**S* Bidirectional Gear Pump has a low displacement. It consists of a gear pair supported by bearing blocks, a housing, a flange and a rear cover. Equipped with two check valves in the rear cover, the pump can work in both cw and ccw direction. It is suitable for small bidirectional hydraulic systems.

Order Code

Shaft Option

Technical Data

Model	Displacement (mL/r)	Pressure (MPa)			Speed (RPM)	Displacement	Efficiency
Model	Displacement (mL/r)	P1	P2	P3	Speed (RPM)	L(mm)	Efficiency
CB-E0.26S	0.27	16	18	20	3000	68.7	80%
CB-E0.32S	0.33					69.2	80%
CB-E0.38S	0.39					69.6	82%
CB-E0.50S	0.49					70.5	82%
CB-E0.60S	0.61					71.5	85%
CB-E0.63S	0.64					71.7
CB-E0.75S	0.76					72.7
CB-E0.88S	0.88					73.7
CB-E1.00S	1.00					74.7
CB-E1.25S	1.25					76.7
CB-E1.50S	1.54					79
