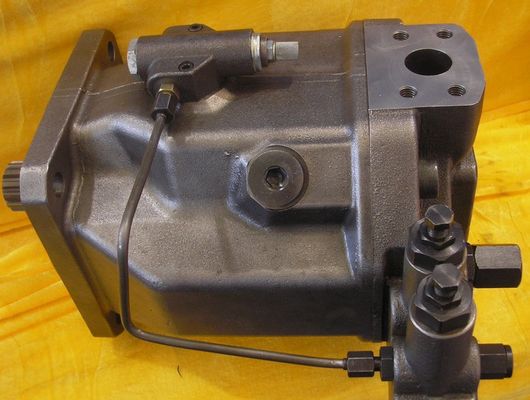

A10VSO140 Kontrol Aliran Pompa Hidrolik Tekanan Tinggi Dispenser Tekanan Tinggi 140cc
Rincian cepat
Pemindahan Hidrolik Pompa Oksida 150cc
Tekanan, Arus, kontrol torsi
Tipe port samping, pompa tunggal
Benang SAE 4 hole UNC inci
untuk sistem hidrolik Metalurgi
Aplikasi:
Sistem Hidrolik, Mesin Teknik, Truk Pompa Beton, Perkapalan sistem hidrolik. Excavator, Loader, Metalurgi sistem hidrolik.

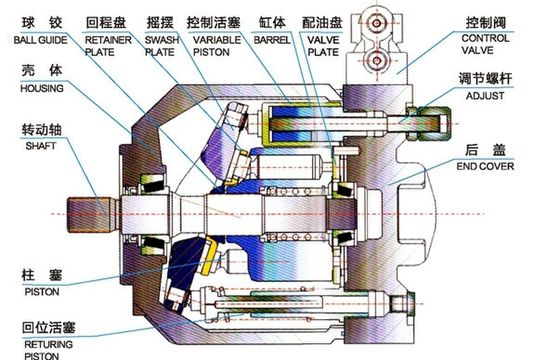

Pompa piston aksial, perpindahan adalah 140cc.
Tekanan, Arus, kontrol torsi
Rotasi searah jarum jam
Segel Perbunan
Poros splined
Benang SAE 4 hole UNC inci
Tipe port samping, pompa tunggal
A10VSO28, A10VSO45, A10VSO71, A10VSO100, A10VSO140
Spesifikasi:
Spesifikasi: | | | | 16/18 | 28 | 45 | 71 | 100 | 140 |
Pemindahan | | V g maks | cm 3 | 18 | 28 | 45 | 71 | 100 | 140 |
kecepatan maksimum | | n maks | rpm | 3300 | 3000 | 2600 | 2200 | 2000 | 1800 |
Maks. mengalir | di n max | q ay | L / min | 59.4 | 84 | 117 | 156 | 200 | 252 |
di 1500 r / menit | 27 | 42 | 68 | 107 | 150 | 210 |
Maks. daya (Δp = 280bar) | di n max | P maks | Kw | 27.7 | 39 | 55 | 73 | 93 | 118 |
di 1500 r / menit | 12.6 | 20 | 32 | 50 | 70 | 98 |
Maks. torsi (Δp = 280bar) | di V g maks | Tmax | Nm | 80.1 | 125 | 200 | 316 | 445 | 623 |
Berat | | m | Kg | 12 | 15 | 21 | 33 | 45 | 60 |
Aplikasi:
Sistem hidrolik Sistem Ship Hydraulic.
Keuntungan:
Kualitas bagus, harga bersaing dan pengiriman cepat.
Suara rendah, Volume Kecil

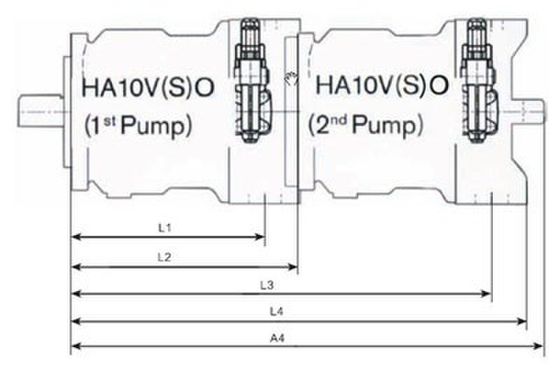

Pemindahan | Mounting Flange A (B) ISO (4) - lubang | Mounting Flange C (D) SAE 2 (4) - lubang | A4 | A5 | A6 |
A1 | A3 | B2 | B10 | L (L1) | A1 | A3 | B2 | B10 | L (L1) |
18 | 80h8 | 109 | 7 | 11 | M16 × 1.5 | 82,55h8 | 106.4 | 6.3 | 11 | 9 / 16-18UNF | 134 | 25 | 20 |
28 | 100h8 | 140 | 9 | 14 | M18 × 1.5 | 101.6h8 | 146 | 9.5 | φ14 | 3 / 4-16 UNF | 174 | 32 | 20 |
45 | 100h8 | 140 | 9 | 14 | M22 × 1.5 | 101.6h8 | 146 | 9.5 | φ14 | 7 / 8-14 UNF | 174 | 40 | 25 |
71 | 125h8 | 180 | 9 | 18 | M22 × 1.5 | 127h8 | 181 | 12.7 | φ18 | 7 / 8-14 UNF | 210 | 50 | 25 |
100 | 125h8 | 180 | 9 | 17.5 | M27 × 2 | 127h8 | 181 | 12.7 | 17.5 | 11 / 16-12 UNF | 210 | 60 | 32 |
140 | 180h8 | 158,4 × 158,4 | 9 | φ18 | M27 × 2 | 152.4h8 | 161,6 × 161,6 | 12.7 | φ20 | 11 / 16-12 UNF | 200 × 200 | 63 | 32 |
MINYAK PORT JENIS Dimensi
Pemindahan | PORTS PADA SISI YANG SEDERHANA | PORTS DI REAR | (UNC) |
B1 | B8 | B9 | B18 | B19 | B20 | B1 | B8 | B9 | B18 | B19 | B20 | A7 | A8 |
18 | 195 | 145 | 63 | 109 | 40 | 130 | | | | | | | M10 (3/8-16OOC) | M10 (3/8-16OOC) |
28 | 206 | 164 | 80 | 119 | 40 | 140 | 225 | 170 | 45 | 73 | 43 | 209 | M10 (7 / 16-14OO) | M10 (3/8-16OOC) |
45 | 224 | 184 | 90 | 129 | 40 | 155 | 244 | 189 | 50 | 81.5 | 40 | 228 | M12 (1/2-13OO) | M10 (3/8-16OOC) |
71 | 259 | 217 | 104 | 143 | 40 | 183 | 278 | 223 | 58 | 91.5 | 40 | 262 | M12 (1/2-13OO) | M10 (3/8-16OOC) |
100 | 329 | 275 | 100 | 148 | 40 | 250 | 344 | 288 | 55 | 99 | 40 | 327 | M12 (1/2-13OO) | M14 (1/6-13OO) |
140 | 337.5 | 275 | 110 | 183 | 27 | 222 | 379 | 293 | 60 | 140 | 27 | 353 | M12 (1/2-13OO) | M14 (1/6-13OO) |
Ukuran universal
CC | B4 | B5 | B6 | B11 | B12 | B13 | B14 | B15 | B16 | B17 | X | B | S |
18 | 43 | 83 | 11.5 | 67 | 66 | 152 | 26.2 | 52.4 | 22.2 | 47.6 | 7 / 16-20UNF | 3/4 " | 1 " |
28 | 40 | 90 | 13 | 74 | 75 | 164 | 30.2 | 58.7 | 22.2 | 47.6 | 7 / 16-20UNF | 3/4 " | 11/4 " |
45 | 45 | 96 | 13 | 83 | 81 | 184 | 35.7 | 69.9 | 26.2 | 52.4 | 7 / 16-20UNF | 1 " | 11/2 " |
71 | 53 | 115 | 17 | 98 | 92 | 210 | 42.9 | 77,8 | 30.2 | 58.7 | 7 / 16-20UNF | 1 " | 2 " |
100 | 95 | 175 | 20 | 106 | 95 | 236 | 50,8 | 88.9 | 31.8 | 66.7 | 7 / 16-20UNF | 11/4 " | 21/2 " |
140 | 78 | 173 | 21 | 118.5 | 108 | 262 | 50,8 | 88.9 | 31.8 | 66.7 | M14 × 1.5 | 11/4 " | 21/2 " |
