Side Port Truck Tekanan Tinggi Pompa Piston Aksial Hidrolik Seri HA10VSO DFLR

Side Port Truck High Pressure Hydraulic Axial Piston Pump HA10VSO DFLR Series

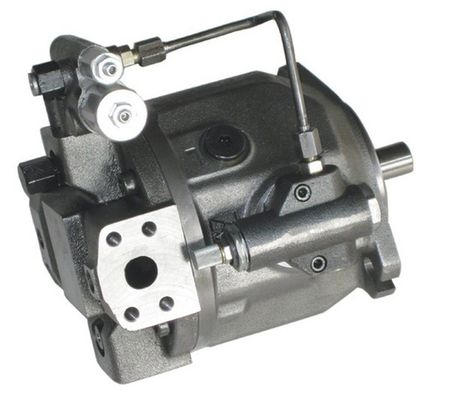

Gambar besar : Side Port Truck Tekanan Tinggi Pompa Piston Aksial Hidrolik Seri HA10VSO DFLR

Detail produk:

Tempat asal:	Cina
Nama merek:	LITOP
Sertifikasi:	ISO9001-2000
Nomor model:	A10VSO45 DFLR / 31R-PSC62N00

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1 Set
Harga:	negotiable
Kemasan rincian:	OEM / NETURAL
Waktu pengiriman:	3-5 hari
Syarat-syarat pembayaran:	T/T, Barat Union, Paypal
Menyediakan kemampuan:	80000 PCS / MONTH

Kontak

Detil Deskripsi produk

Menyoroti:	pompa hidrolik perpindahan variabel

Side Port Truck Tekanan Tinggi Pompa Piston Aksial Hidrolik Seri HA10VSO DFLR

Rincian cepat

Pompa piston aksial

Tekanan, Arus, kontrol torsi

Poros miring

Perbunan segel

untuk truk pompa beton

Kontrol Torque Pompa Aksial HA10VSO DFLR Series

Pompa piston aksial, perpindahan adalah 45cc.

Tekanan, Arus, kontrol torsi

Rotasi searah jarum jam

Segel Perbunan

Poros miring

SAE 2 lubang UNC metrik

Tipe port samping, pompa tunggal

A10VSO28, A10VSO45, A10VSO71, A10VSO100, A10VSO140

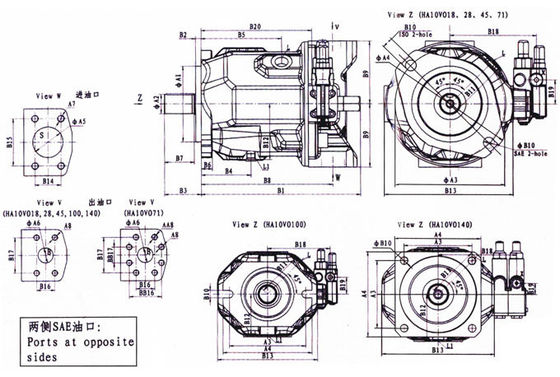

Pemindahan	Mounting Flange A (B) ISO (4) - lubang					Mounting Flange C (D) SAE 2 (4) - lubang					A4	A5	A6
Pemindahan	A1	A3	B2	B10	L (L1)	A1	A3	B2	B10	L (L1)	A4	A5	A6
18	80h8	109	7	11	M16 × 1.5	82,55h8	106.4	6.3	11	9 / 16-18UNF	134	25	20
28	100h8	140	9	14	M18 × 1.5	101.6h8	146	9.5	φ14	3 / 4-16 UNF	174	32	20
45	100h8	140	9	14	M22 × 1.5	101.6h8	146	9.5	φ14	7 / 8-14 UNF	174	40	25
71	125h8	180	9	18	M22 × 1.5	127h8	181	12.7	φ18	7 / 8-14 UNF	210	50	25
100	125h8	180	9	17.5	M27 × 2	127h8	181	12.7	17.5	11 / 16-12 UNF	210	60	32
140	180h8	158,4 × 158,4	9	φ18	M27 × 2	152.4h8	161,6 × 161,6	12.7	φ20	11 / 16-12 UNF	200 × 200	63	32

MINYAK PORT JENIS Dimensi

Pemindahan	PORTS PADA SISI YANG SEDERHANA						PORTS DI REAR						(UNC)
Pemindahan	B1	B8	B9	B18	B19	B20	B1	B8	B9	B18	B19	B20	A7	A8
18	195	145	63	109	40	130							M10 (3/8-16OOC)	M10 (3/8-16OOC)
28	206	164	80	119	40	140	225	170	45	73	43	209	M10 (7 / 16-14OO)	M10 (3/8-16OOC)
45	224	184	90	129	40	155	244	189	50	81.5	40	228	M12 (1/2-13OO)	M10 (3/8-16OOC)
71	259	217	104	143	40	183	278	223	58	91.5	40	262	M12 (1/2-13OO)	M10 (3/8-16OOC)
100	329	275	100	148	40	250	344	288	55	99	40	327	M12 (1/2-13OO)	M14 (1/6-13OO)
140	337.5	275	110	183	27	222	379	293	60	140	27	353	M12 (1/2-13OO)	M14 (1/6-13OO)

Ukuran universal

CC	B4	B5	B6	B11	B12	B13	B14	B15	B16	B17	X	B	S
18	43	83	11.5	67	66	152	26.2	52.4	22.2	47.6	7 / 16-20UNF	3/4 "	1 "
28	40	90	13	74	75	164	30.2	58.7	22.2	47.6	7 / 16-20UNF	3/4 "	11/4 "
45	45	96	13	83	81	184	35.7	69.9	26.2	52.4	7 / 16-20UNF	1 "	11/2 "
71	53	115	17	98	92	210	42.9	77,8	30.2	58.7	7 / 16-20UNF	1 "	2 "
100	95	175	20	106	95	236	50,8	88.9	31.8	66.7	7 / 16-20UNF	11/4 "	21/2 "
140	78	173	21	118.5	108	262	50,8	88.9	31.8	66.7	M14 × 1.5	11/4 "	21/2 "
