Flow Control Tandem Pompa Hidrolik A10VSO28 dengan Torsi 125 Nm

Flow Control Tandem Hydraulic Pump A10VSO28 with Torque 125 Nm

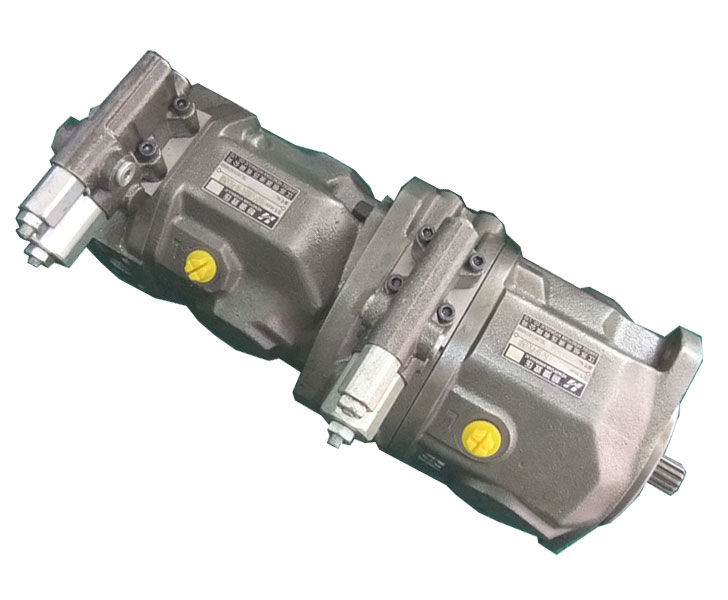

Gambar besar : Flow Control Tandem Pompa Hidrolik A10VSO28 dengan Torsi 125 Nm

Detail produk:

Tempat asal:	Cina
Nama merek:	SJ Hydraulic
Sertifikasi:	ISO9000
Nomor model:	A10VSO28 DFR / 31R-PSC62K01

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1 pc
Kemasan rincian:	Karton
Waktu pengiriman:	15days
Syarat-syarat pembayaran:	T/T, L/C
Menyediakan kemampuan:	PC 1000 per bulan

Kontak

Detil Deskripsi produk

Menyoroti:	pompa kontrol aliran

Flow Control Tandem Pompa Hidrolik A10VSO28 dengan Torsi 125 Nm

Descrition:

Pompa piston aksial, perpindahannya 28cc.

Kontrol Tekanan dan Aliran

Rotasi searah jarum jam

Perbunan anjing laut

Poros berpencar

Benang SAE 2 lubang UNC inci

Thru-drive Rear Cover, dapat menghubungkan pompa lain

Aplikasi:

Sistem Hidrolik, mesin rekayasa, truk pompa beton

Keunggulan kompetitif:

Kualitas bagus, harga kompetitif dan pengiriman cepat.

Kebisingan rendah, SmallVolume

Ukuran				16/18	28	45	71	100	140
Pemindahan		_{Vg maks}	cm ³	18	28	45	71	100	140
kecepatan maksimum		n _maks	rpm	3300	3000	2600	2200	2000	1800
Max. mengalir	dalam n _maks	q _v	L / mnt	59,4	84	117	156	200	252
Max. mengalir	dalam 1500 r / mnt	q _v	L / mnt	27	42	68	107	150	210
Max. daya (Δp = 280bar)	dalam n _maks	P _maks	Kw	27,7	39	55	73	93	118
Max. daya (Δp = 280bar)	dalam 1500 r / mnt	P _maks	Kw	12.6	20	32	50	70	98
Max. torsi (Δp = 280bar)	dalam _{Vg maks}	Tmax	Nm	80,1	125	200	316	445	623
Berat		m	Kg	12	15	21	33	45	60
