Excavator Torque Control Pressure Tandem Hydraulic Pump For Truck , Boat

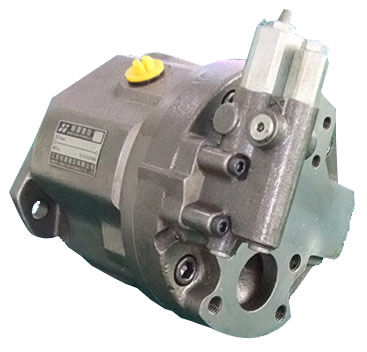

Gambar besar : Excavator Torque Control Pressure Tandem Hydraulic Pump For Truck , Boat

Detail produk:

Place of Origin:	China
Nama merek:	Hengyuan Hydraulic
Sertifikasi:	ISO9000
Model Number:	A10VSO71 DFLR/31R-PSC61N00

Syarat-syarat pembayaran & pengiriman:

Minimum Order Quantity:	1 pc
Packaging Details:	Carton
Delivery Time:	15days
Payment Terms:	T/T, L/C
Supply Ability:	1000 pcs per month

Kontak

Detil Deskripsi produk

Menyoroti:	radial piston pump

Excavator Torque Control Pressure Tandem Hydraulic Pump For Truck , Boat

Quick details

Tandem Hydraulic Pump

Pressure, Flow, torque control

displacement is 71cc

single pump

for Concrete pump truck, Boats hydraulic system

Excavator Pressure Hydraulic Pumps

Axial piston pump, displacement is 71cc.

Pressure, Flow, torque control

Clockwise Rotation

Perbunan seals

Splined shaft

SAE 2 hole UNC inch thread

Rear port type, single pump

Specifications:

Specifications				16/18	28	45	71	100	140
Displacement		V_{g max}	cm³	18	28	45	71	100	140
Max speed		n_max	rpm	3300	3000	2600	2200	2000	1800
Max. flow	in n_max	q_v	L/min	59.4	84	117	156	200	252
Max. flow	in 1500 r/min	q_v	L/min	27	42	68	107	150	210
Max. power (Δp=280bar)	in n_max	P_max	Kw	27.7	39	55	73	93	118
Max. power (Δp=280bar)	in 1500 r/min	P_max	Kw	12.6	20	32	50	70	98
Max. torque (Δp=280bar)	in V_{g max}	Tmax	Nm	80.1	125	200	316	445	623
Weight		m	Kg	12	15	21	33	45	60
