118 kW Pompa Piston Hidrolik A10VSO140 dengan SAE 4 Lubang UNC Inch Thread

118 kW Hydraulic Piston Pumps A10VSO140 with SAE 4 Hole UNC Inch Thread

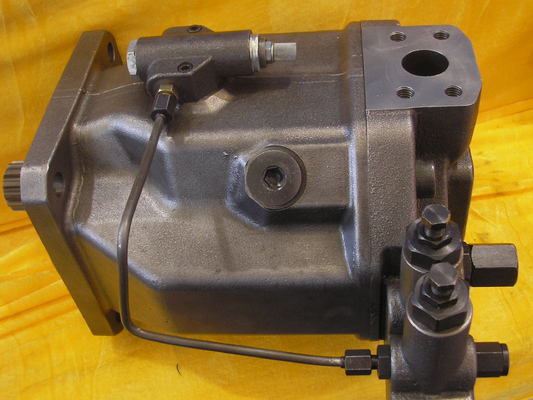

Gambar besar : 118 kW Pompa Piston Hidrolik A10VSO140 dengan SAE 4 Lubang UNC Inch Thread

Detail produk:

Tempat asal:	Cina
Nama merek:	SJ Hydraulic
Sertifikasi:	ISO9000
Nomor model:	A10VSO140 DFLR / 31R-PSD62N00

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1 pc
Kemasan rincian:	Karton
Waktu pengiriman:	15days
Syarat-syarat pembayaran:	T/T, L/C
Menyediakan kemampuan:	PC 1000 per bulan

Kontak

Detil Deskripsi produk

Merek:	SJ Hidrolik	Model:	A10VSO140 DFLR / 31R-PSD62N00
Teori:	Hidrolik	Kekuasaan:	minyak hidrolik
Tekanan:	tekanan tinggi	Garansi:	satu tahun
Aplikasi:	Excavator, dozer, loader, sistem hidrolik	Standar atau Non:	Standar
Layanan:	Layanan purna jual yang baik	Kondisi:	Baru
Cahaya Tinggi:	pompa piston kecil , pompa piston tunggal

118 kW Pompa Piston Hidrolik A10VSO140 dengan SAE 4 Lubang UNC Inch Thread

Descrition:

Pompa piston aksial, perpindahannya adalah 140cc.

Tekanan, Aliran, kontrol torsi

Rotasi searah jarum jam

Perbunan anjing laut

Poros berpencar

Benang SAE 4 lubang UNC inci

Tipe port samping, pompa tunggal

Aplikasi:

Sistem Hidraulik, Mesin rekayasa, Truk pompa beton, Sistem hidrolik perahu. Excavator, Loader, Sistem hidrolik Metalurgi.

Keunggulan kompetitif:

Kualitas bagus, harga kompetitif, pengiriman cepat, pelayanan bagus.

Kebisingan rendah dan volume kecil

Ukuran				16/18	28	45	71	100	140
Pemindahan		_{Vg maks}	cm ³	18	28	45	71	100	140
kecepatan maksimum		n _maks	rpm	3300	3000	2600	2200	2000	1800
Max. mengalir	dalam n _maks	q _v	L / mnt	59,4	84	117	156	200	252
Max. mengalir	dalam 1500 r / mnt	q _v	L / mnt	27	42	68	107	150	210
(Δp = 280bar) Max. kekuasaan	dalam n _maks	P _maks	Kw	27,7	39	55	73	93	118
(Δp = 280bar) Max. kekuasaan	dalam 1500 r / mnt	P _maks	Kw	12.6	20	32	50	70	98
(Δp = 280bar) Max. torsi	dalam _{Vg maks}	Tmax	Nm	80,1	125	200	316	445	623
Berat		m	Kg	12	15	21	33	45	60
